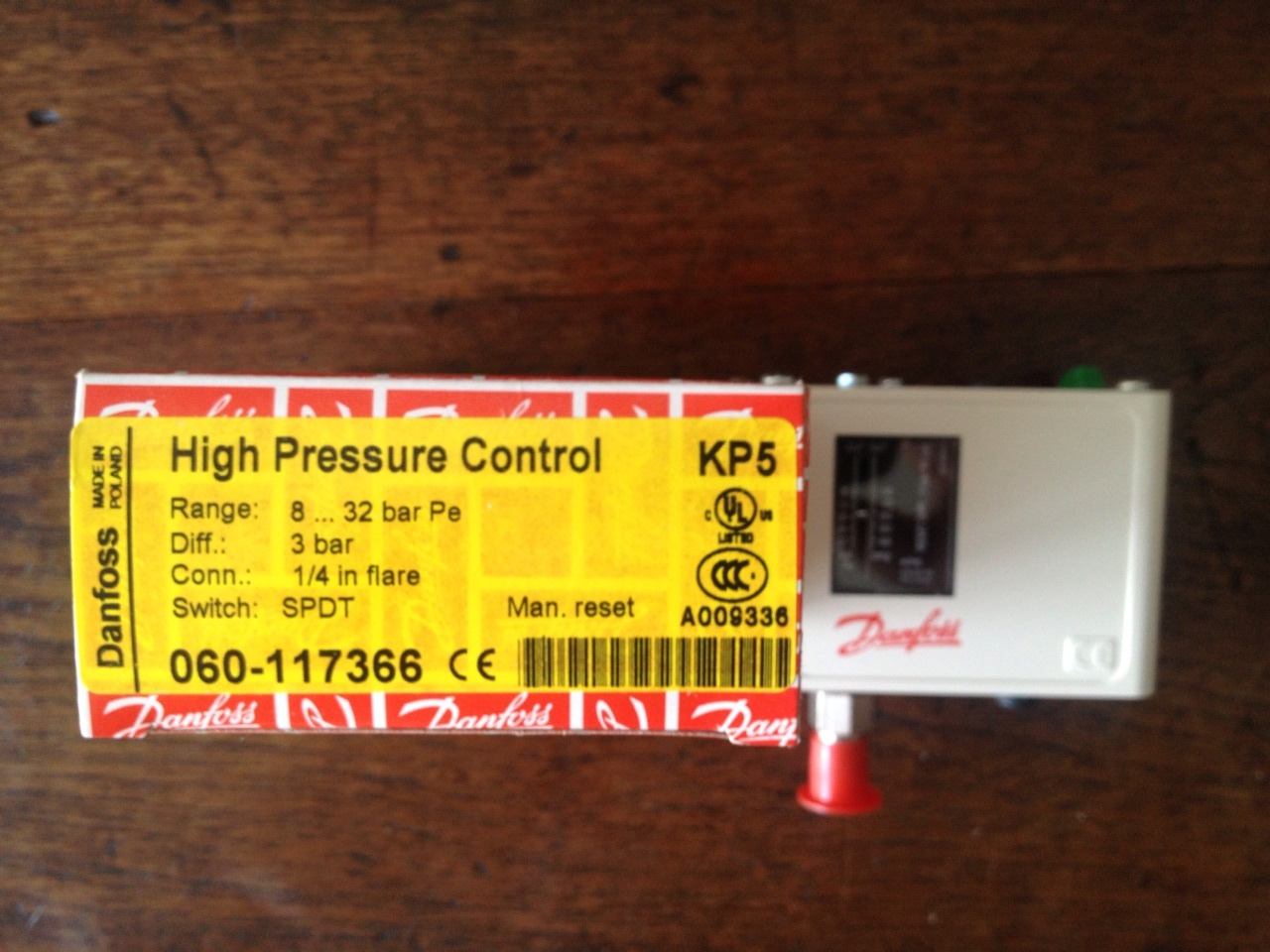

Name: Pressure contro KP5 060-117366
SKU: 060-117366
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	KP5
Weight	0.287 Kg
Ambient temperature [°C]	-40 - 65 °C
Ambient temperature [°F]	-40 - 149 °F
Ambient temperature range [°C]	-40 - 65 °C
Ambient temperature range [°F]	-40 - 149 °F
Approval	BV, c UL us UL873, CS C22.2, CCC, CE, DNV, GL, LR, RINA, RMRS
Contact function	SPDT
Contact rating	AC1=16 A, 400 V
Contact rating	AC15=10 A, 400 V
Contact rating	AC3=16 A, 400 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR 112 A, 400 V
Differential [bar]	3,00 bar
Differential [psi]	43,00 psi
EAN number	5702422001638
Electrical connections comments	Rubber cable gland
Electrical connection size	6-14 mm
Enclosure rating	IP30
Max. test pressure [bar] Pe	35,0 bar
Max. Working Pressure [bar]	35,0 bar
Max. Working Pressure [psig]	510 Psig
Max. Working Pressure [bar] Pe	35,0 bar
Max. Working Pressure [psig] Pe	510,0 psig
Nema Rating	1
Pack format	Multi pack
Pressure connection standard	DIN 8906
Pressure connection type	Flare - 1/4 Male
Pressure range category	HIGH PRESSURE
Pressure sensing element	Bellows
Product description	Pressure control
Quantity per pack format	36 pc
Refrigerant(s)	HCFC/Non flam HFC
Regulation range [bar] Pe	8,00 - 32,00 bar
Regulation range [psig] Pe	116,00 - 464,00 psig
Reset function	Max
UL approval file name	E31024
