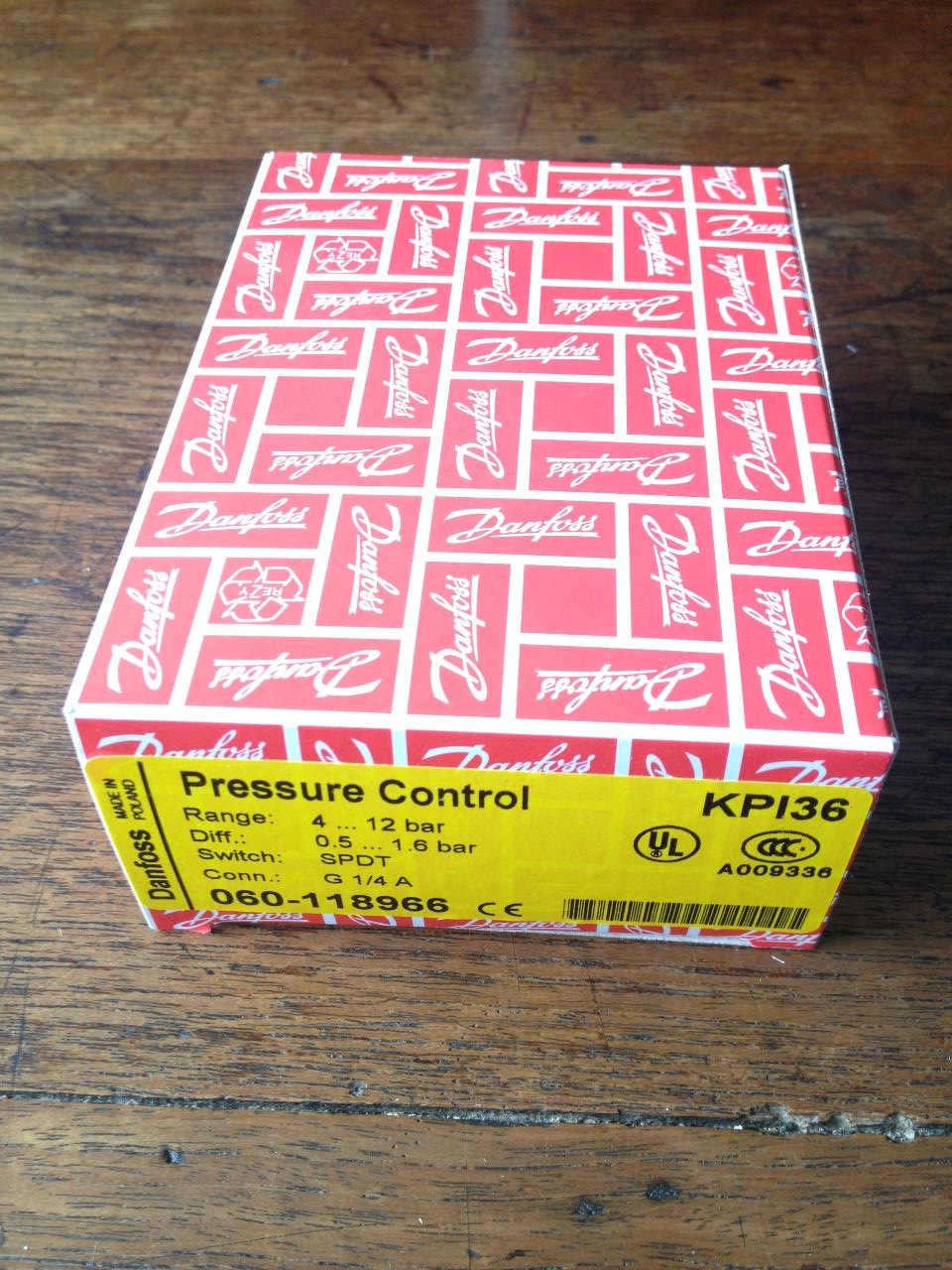

Name: Pressure Control KPI36 060-1189
SKU: 060-1189
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	KPI36
Weight	0.313 Kg
Ambient temperature [°C]	-40 - 65 °C
Ambient temperature [°F]	-40 - 149 °F
Ambient temperature [°C]	-40 - 65 °C
Ambient temperature range [°F]	-40 - 149 °F
Approval	c UL us UL873, CS C22.2, CCC, CE, FM
Contact function	SPDT
Contact rating	AC1=10 A, 440 V
Contact rating	AC15=4 A, 440 V
Contact rating	AC3=6 A, 440 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR max. 50 A
Differential [bar]	0,50 - 1,60 bar
Differential [psi]	7,00 - 23,00 psi
EAN	5702423146703
Electrical conn. comments	Rubber cable gland
Electrical connection size	6-14 mm
Enclosure rating	IP30
Identical product	060-119666
Max. test pressure [bar] Pe	18,0 bar
Max. Working Pressure [bar]	18,0 bar
Max. Working Pressure [psig]	261 psig
Max. working pressure [bar] Pe	18,0 bar
Max. working pressure [psig] Pe	261,0 psig
Nema rating (~)	1
Packing format	Multi pack
Pressure connection standard	ISO 228-1
Pressure connection type	G - 1/4 Male
Pressure range category	Medium pressure
Pressure sensing element	Bellows
Product description	Pressure Control
Quantity per packing format	36 PC
Regulation range [bar] Pe	4,00 - 12,00 bar
Regulation range [psig] Pe	58,00 - 174,00 psig
Reset function	AUTO
UL approval file name	E31024

Pressure Control KPI36 060-1189
