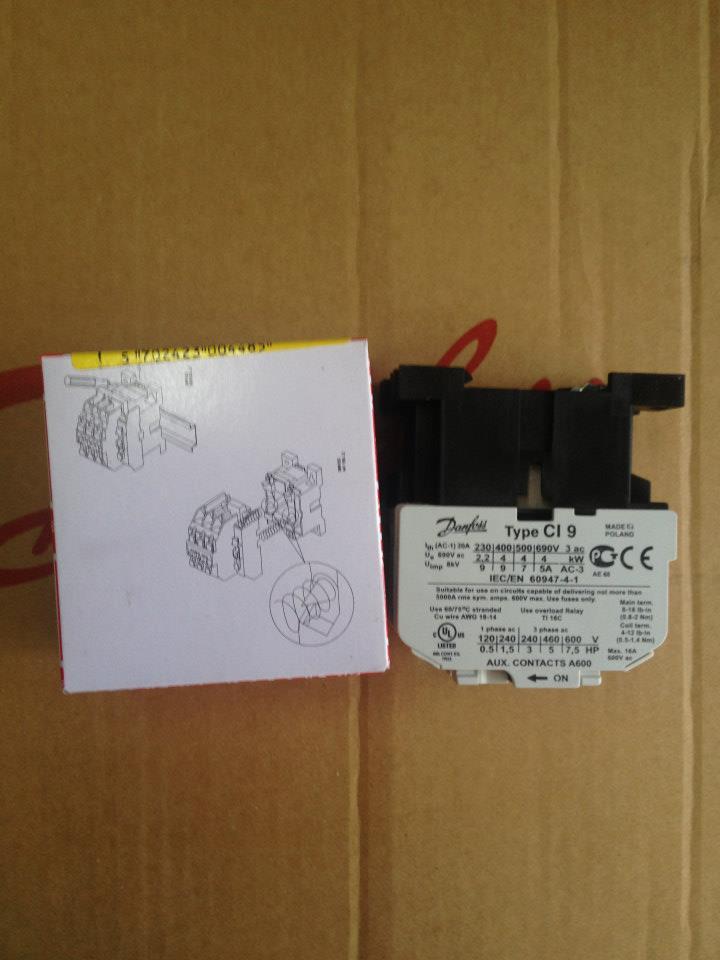

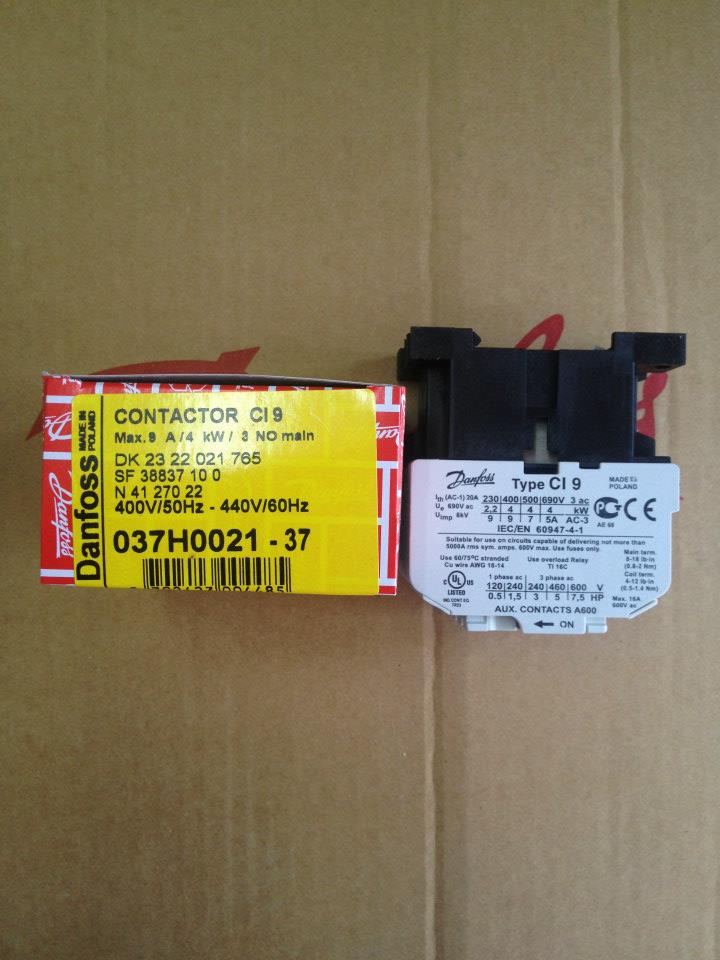

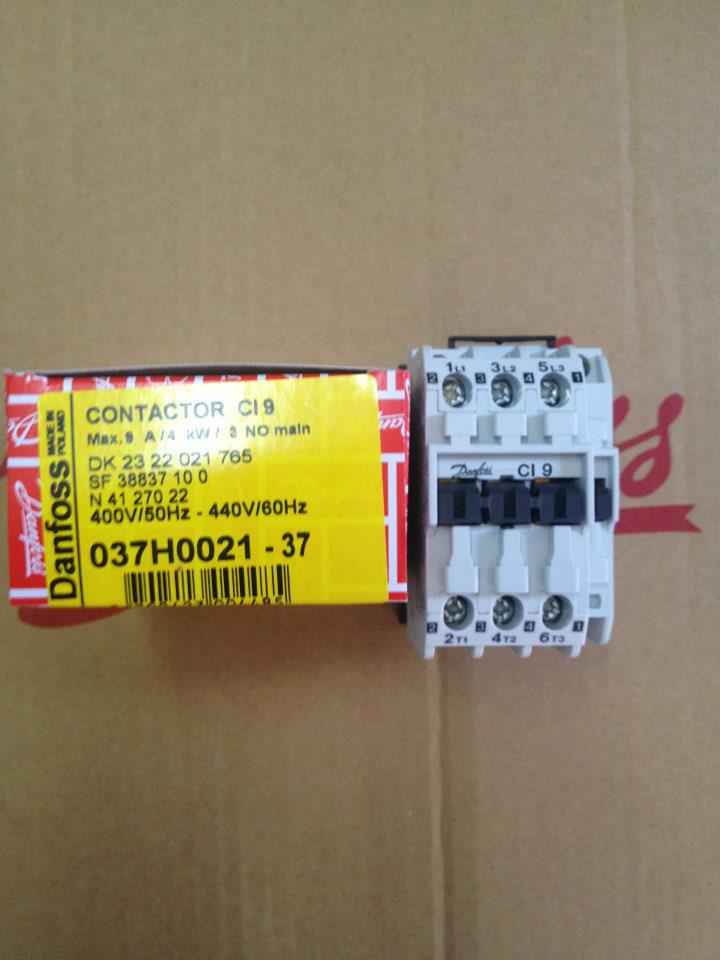

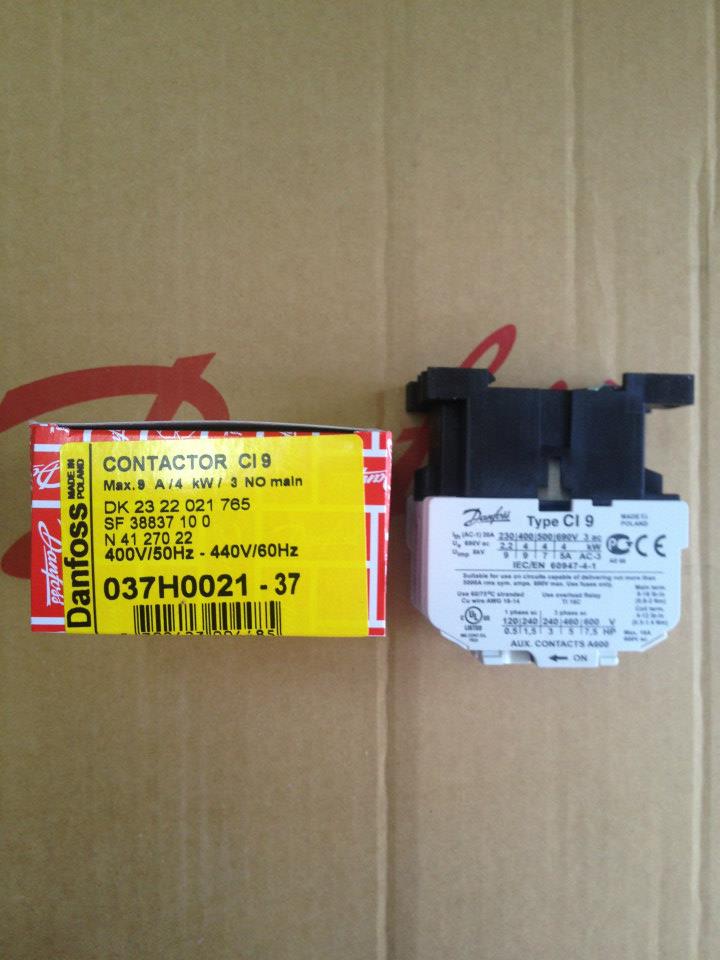

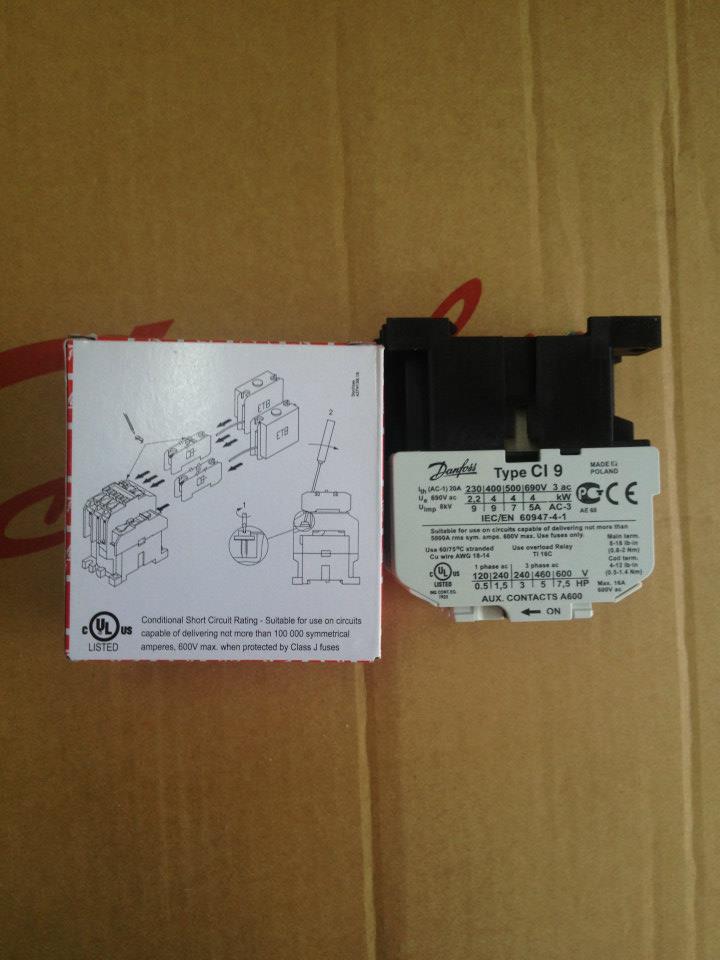

CI9 Code 037H0021-37

The contactor programme CI 6-50 is based on three frame sizes. The smallest frame size consists of CI 6-15 (2.2-7.5 kW), the middle contains the CI 16-30 range (7.5-15 kW) and the largest frame size is represented by the CI 32-50 (15-25 kW). All frame sizes are provided with three NO main contacts. CI 6-15 are available with four NO main contacts.

• Compact design in three frame sizes
• Screw or DIN rail mounting
• Power range 2.2 to 25 kW
• For ac/dc coil voltages

Characteristic	Value
Type	CI 9
Weight	0.273 Kg
AC-1 load Ith, open	25,0 A
AC-1 load Ithe, enclosure	16,0 A
AC-3 load Ie	9,0 A
AC-3 power, 220-240 V	2,2 kW
AC-3 power, 380-690 V	4,0 kW
Approval	CE, DNV, UL
Coil voltage, 50 Hz	380 - 400 V
Coil voltage, 60 Hz	440 V
EAN	5702423004485
Identical product	037H4021
Main contacts	3
Maximum number of add-on auxiliary contacts	4
Packing format	Multi pack
Product description	CONTACTOR
Product Design class	C
Quantity per packing format	30 PC
UL approval file name	E63581
