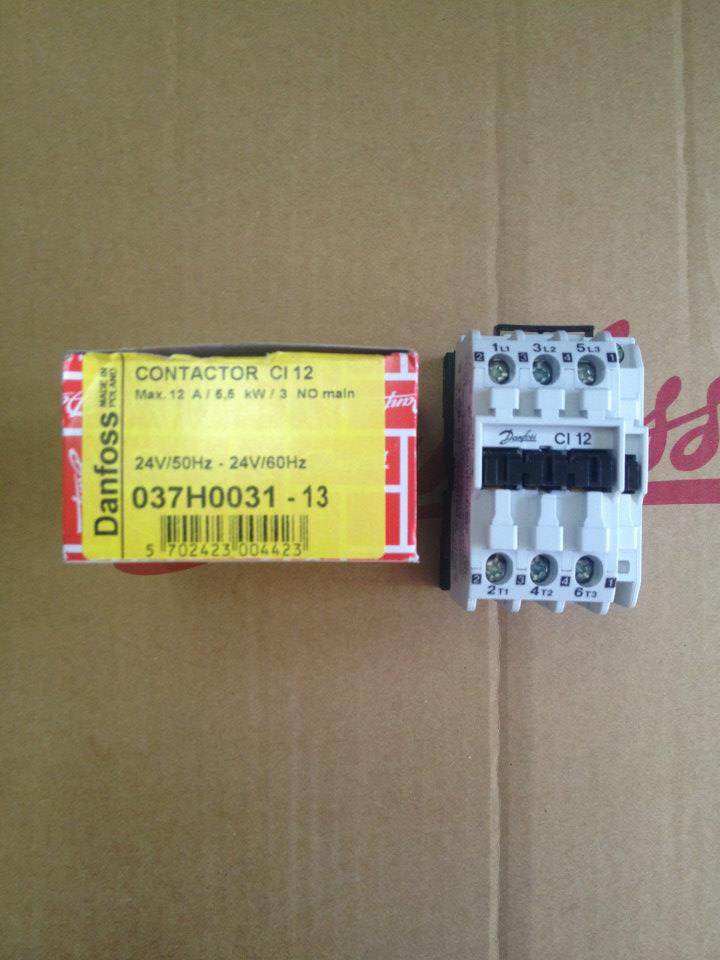

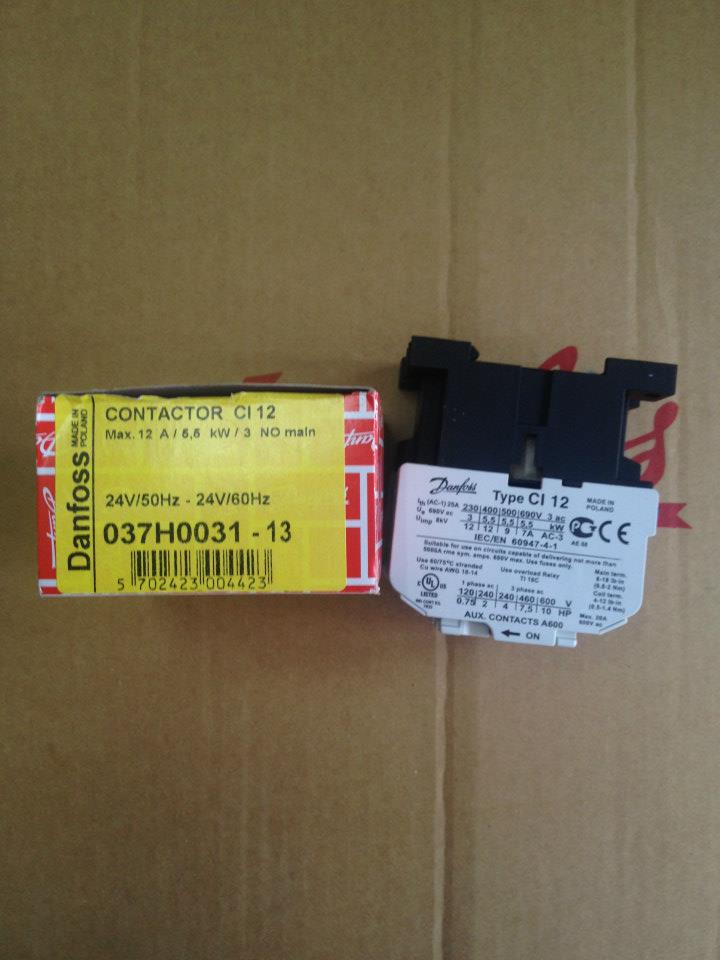

CI 12 Code 037H0031-13

The contactor programme CI 6-50 is based on three frame sizes. The smallest frame size consists of CI 6-15 (2.2-7.5 kW), the middle contains the CI 16-30 range (7.5-15 kW) and the largest frame size is represented by the CI 32-50 (15-25 kW). All frame sizes are provided with three NO main contacts. CI 6-15 are available with four NO main contacts.

• Compact design in three frame sizes
• Screw or DIN rail mounting
• Power range 2.2 to 25 kW
• For ac/dc coil voltages

Characteristic	Value
Type	CI 12
Weight	0.286 Kg
AC-1 load Ith, open [A]	25,0 A
AC-1 load Ithe, enclosure	20,0 A
AC-3 load Ie [A]	12,0 A
AC-3 power @220-240 V	3,0 kW
AC-3 power @380-690 V	5,5 KW
Approval	CE, DNV, UL
Coil voltage@50 Hz [V]	24 V
Coil voltage@60 Hz [V]	24 V
EAN number	5702423004423
Identical product	037H4031
Main contacts	3
Maximum number of add-on auxiliary contacts	4
Pack format	Multi pack
Product description	CONTACTOR
Product Design Class	C
Quantity per pack format	30 PC
UL approval file name	E63581
