Characteristic	Value
Type	KP36
Weight	0.277 Kg
Ambient temperature [°C]	-40 - 65 °C
Ambient temperature [°F]	-40 - 149 °F
Ambient temperature [°C]	-40 - 65 °C
Ambient temperature range [°F]	-40 - 149 °F
Ammonia application	No
Approval	C UL US, CCC, CE, FM, GOST R, RINA, RMRS
Contact function	SPDT
Contact rating	AC1=16 A, 400 V
Contact rating	AC15=10 A, 400 V
Contact rating	AC3=16 A, 400 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR 112 A, 400 V
Differential [bar]	0,70 - 4,00 bar
Differential [psi]	10,00 - 58,00 psi
EAN	5702428365291
Electrical conn. comments	Rubber cable gland
Electrical connection size	6-14 mm
Enclosure rating	IP30
Identical product	060-110891
Max. test pressure [bar] Pe	22,0 bar
Max. Working Pressure [bar]	17,0 bar
Max. Working Pressure [psig]	245 psig
Max. working pressure [bar] Pe	17,0 bar
Max. working pressure [psig] Pe	245,0 psig
Nema rating (~)	1
Packing format	Industrial pack
Pressure connection	G 1/4
Pressure connection standard	ISO 228-1
Pressure Male/Female	Male
Pressure range category	Medium pressure
Pressure sensing element	Bellows
Product description	Pressure Control
Product Design class	B
Quantity per packing format	48 PC
Regulation range [bar] Pe	2,00 - 14,00 bar
Regulation range [psig] Pe	29,00 - 203,00 psig
Reset function	AUTO
UL approval file name	E31024
UL approval file name	MH27572

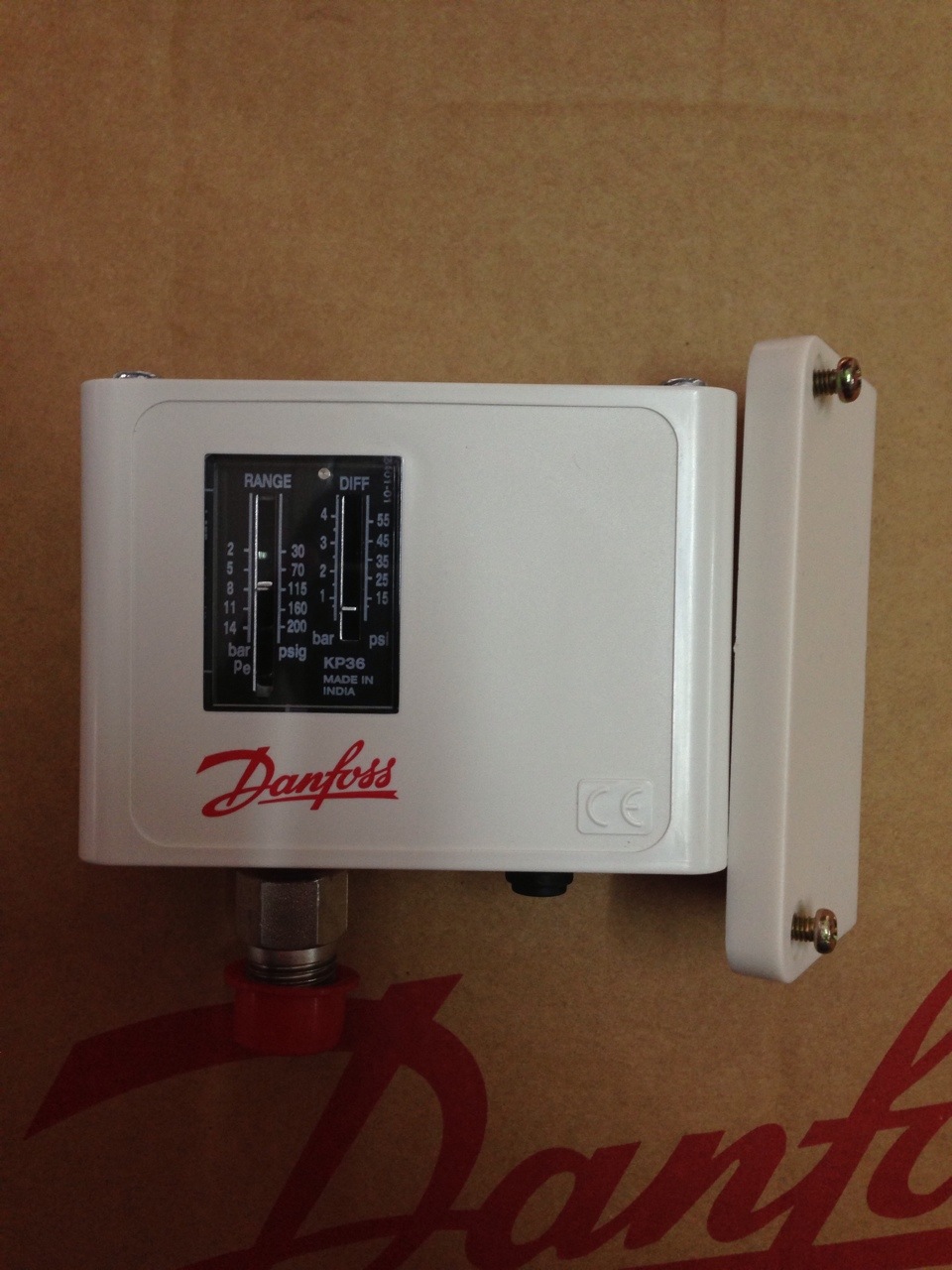

KP36 Code 060-1128
