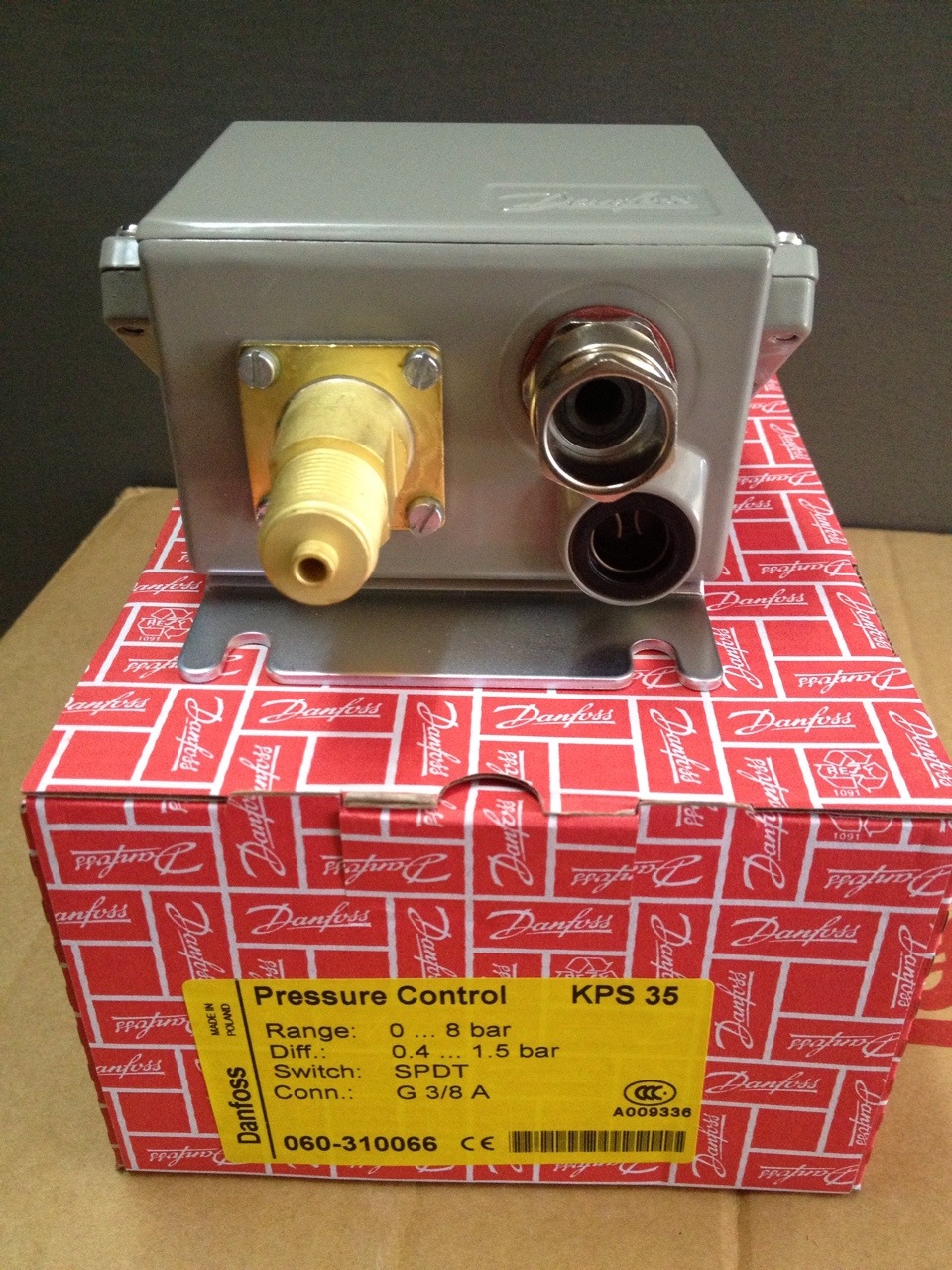

Name: KPS35 Code 060-310066
SKU: SKU-00073
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	KPS35
Weight	0.943 Kg
Ambient temperature [°C]	-40 - 70 °C
Ambient temperature [°F]	-40 - 158 °F
Ambient temperature [°C]	-40 - 70 °C
Ambient temperature range [°F]	-40 - 158 °F
Ammonia application	No
Approval	ABS, BV, C UL US, CCC, CE, DNV, GL, KR, LR, NKK, RINA, RMRS
Contact function	SPDT gold
Contact rating	AC1=10 A, 440 V
Contact rating	AC15=4 A, 440 V
Contact rating	AC3=6 A, 440 V
Contact rating	DC13=12 W, 220 V
Contact rating	for gold 1-30 mA, 5-30 V
Contact rating	LR max. 50 A
Differential [bar]	0,40 - 1,50 bar
Differential [psi]	6,00 - 22,00 psi
EAN	5702423146772
Electrical conn. comments	Metal cable gland
Electrical connection size	Pg 13.5
Enclosure rating	IP67
Identical product	060-410266
Max. test pressure [bar] Pe	12,0 bar
Max. Working Pressure [bar]	12,0 bar
Max. Working Pressure [psig]	174 psig
Max. working pressure [bar] Pe	12,0 bar
Max. working pressure [psig] Pe	174,0 psig
Packing format	Multi pack
Pressure connection	G 3/8
Pressure connection standard	ISO 228-1
Pressure Male/Female	Male
Pressure range category	Low pressure
Pressure sensing element	Bellows
Product description	Pressure Control
Product Design class	B
Quantity per packing format	8 PC
Regulation range [bar] Pe	0,00 - 8,00 bar
Regulation range [MPa] Pe	0,00 - 0,80 MPa
Regulation range [psig] Pe	0,00 - 116,00 psig
Reset function	AUTO
UL approval file name	E73170

KPS35 Code 060-310066
