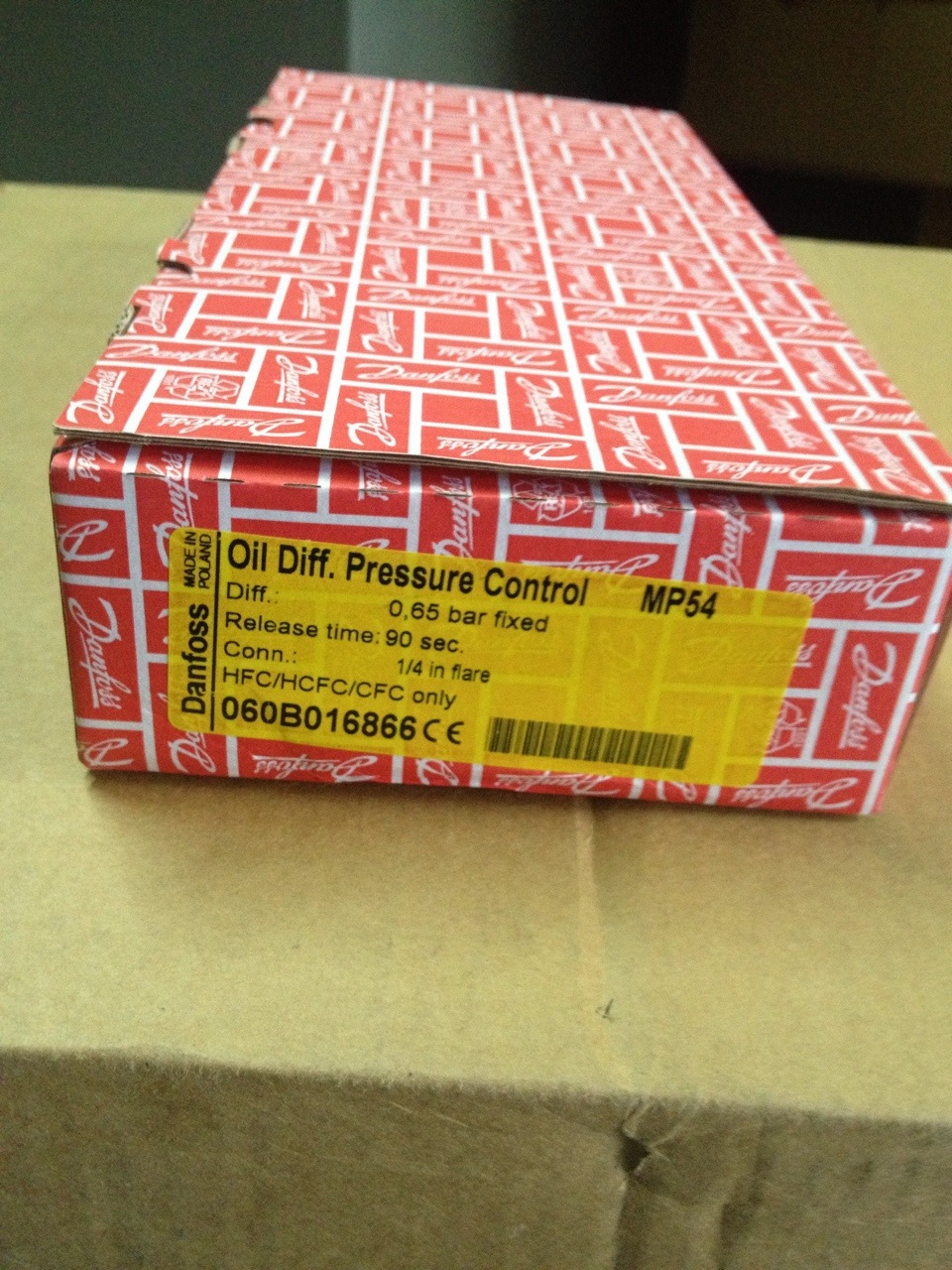

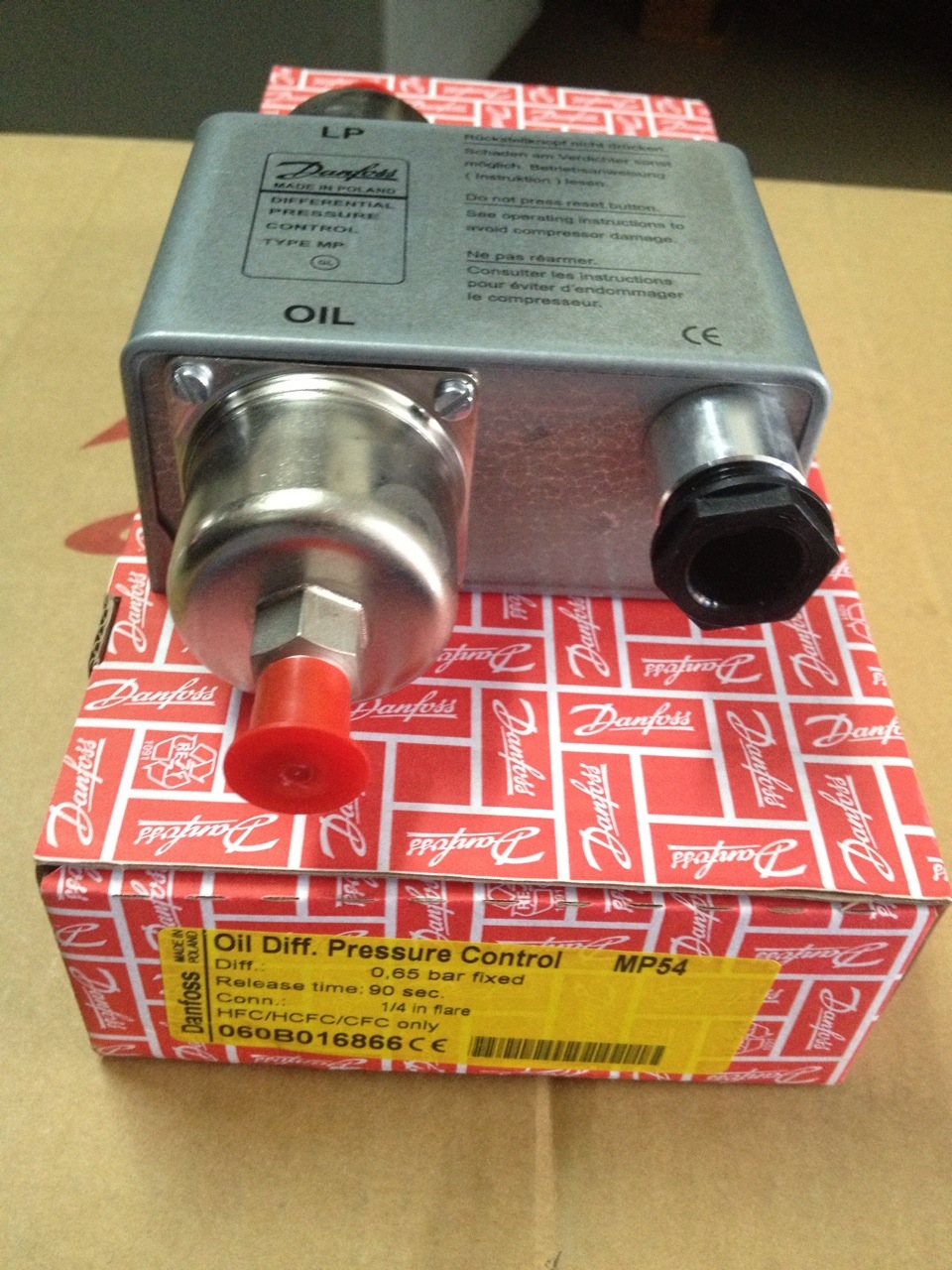

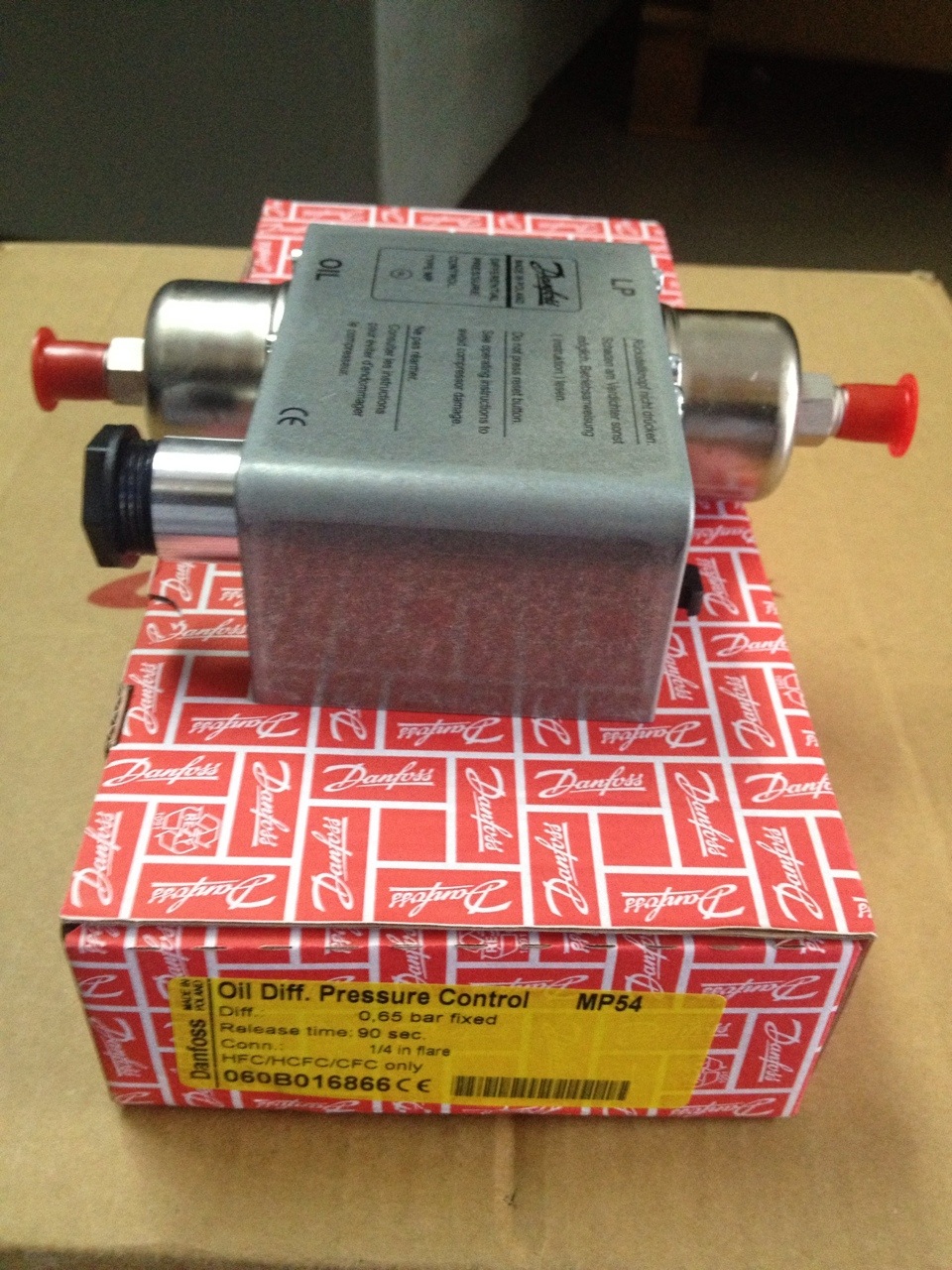

Name: MP54 Code 060B016866
SKU: SKU-00074
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	MP54
Weight	0.657 Kg
Adjustment	Cut out for falling pressure
Ambient temperature [°C]	-40 - 60 °C
Ambient temperature [°F]	-40 - 140 °F
Ambient temperature [°C]	-40 - 60 °C
Ambient temperature range [°F]	-40 - 140 °F
Ammonia application	No
Approval	CCC, CE, GL, RINA
Contact function	SPDT
Contact rating	AC15=2 A, 250 V
Contact rating	DC13=0.2 A, 250 V
EAN number	5702428365482
Electrical conn. Male/Female	Male and Female
Electrical connection size	PG 13.5
Electrical connection standard	EN 175301-803-A
Electrical specification standard	EN 60947-5
Enclosure rating	IP20
Fixed Differential [bar]	0,65 bar
Control differential (fixed) [psi]	9 psi
Glow lamp	No
Identical product	060B100966
Max. test pressure [bar] Pe	22,0 bar
Max. Working Pressure [bar]	17,0 bar
Max. Working Pressure [psig]	245 psig
Max. Working Pressure [bar] Pe	17,0 bar
Max. Working Pressure [psig] Pe	245,0 psig
Operating range LP side [bar] Pe	-1 - 12 bar
Operat. range LP side [psig] Pe	-15 - 175 psig
Pack format	Multi pack
Pressure connection size	1/4 IN
Pressure connection type	Flare
Pressure Male/Female	Male
Product description	Differential Pressure Control
Product Design Class	B
Quantity per pack format	21 pc
Refrigerant(s)	HCFC/HFC
Relay release time [s]	90 s
Reset function	Min

MP54 Code 060B016866
