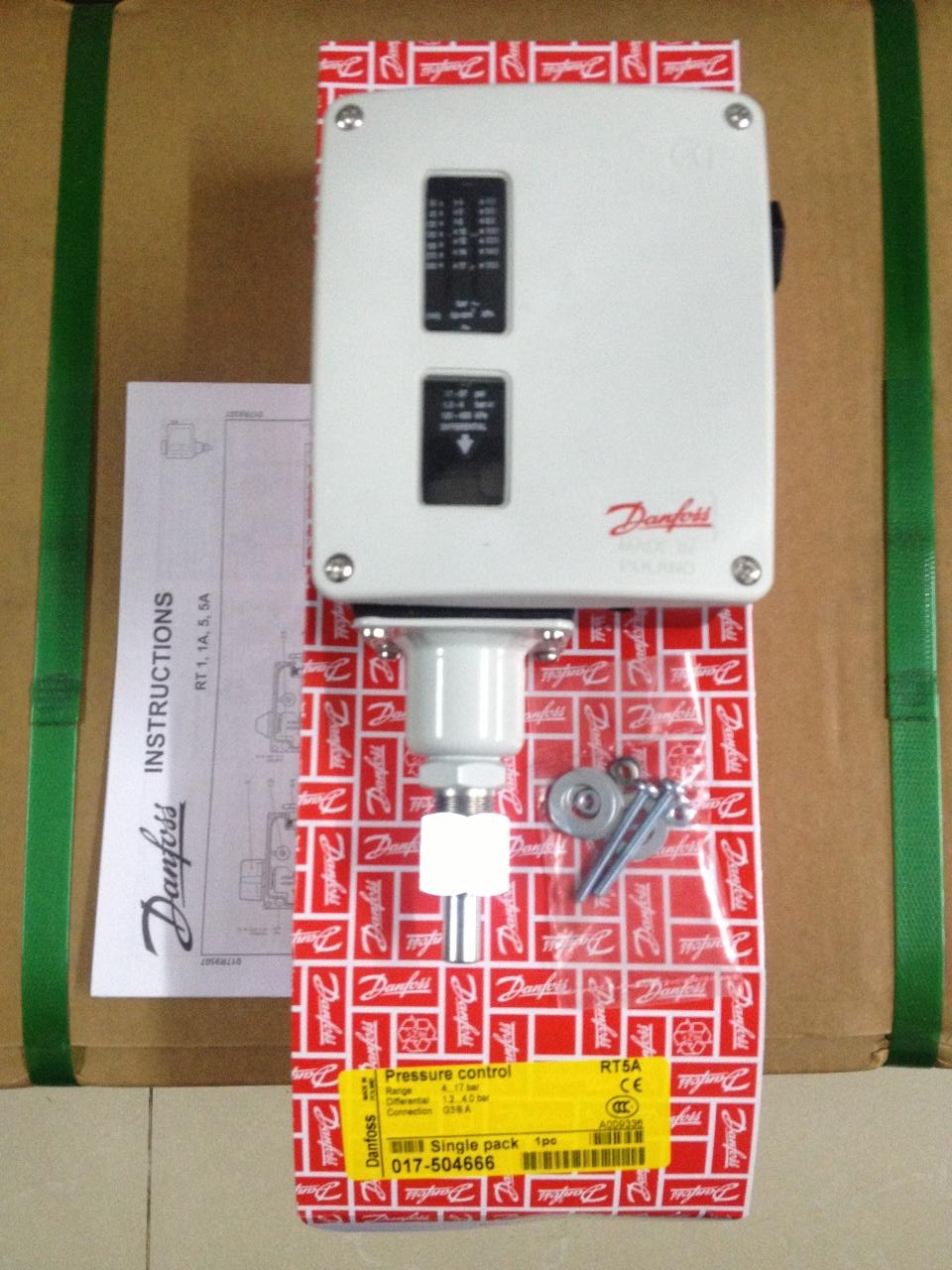

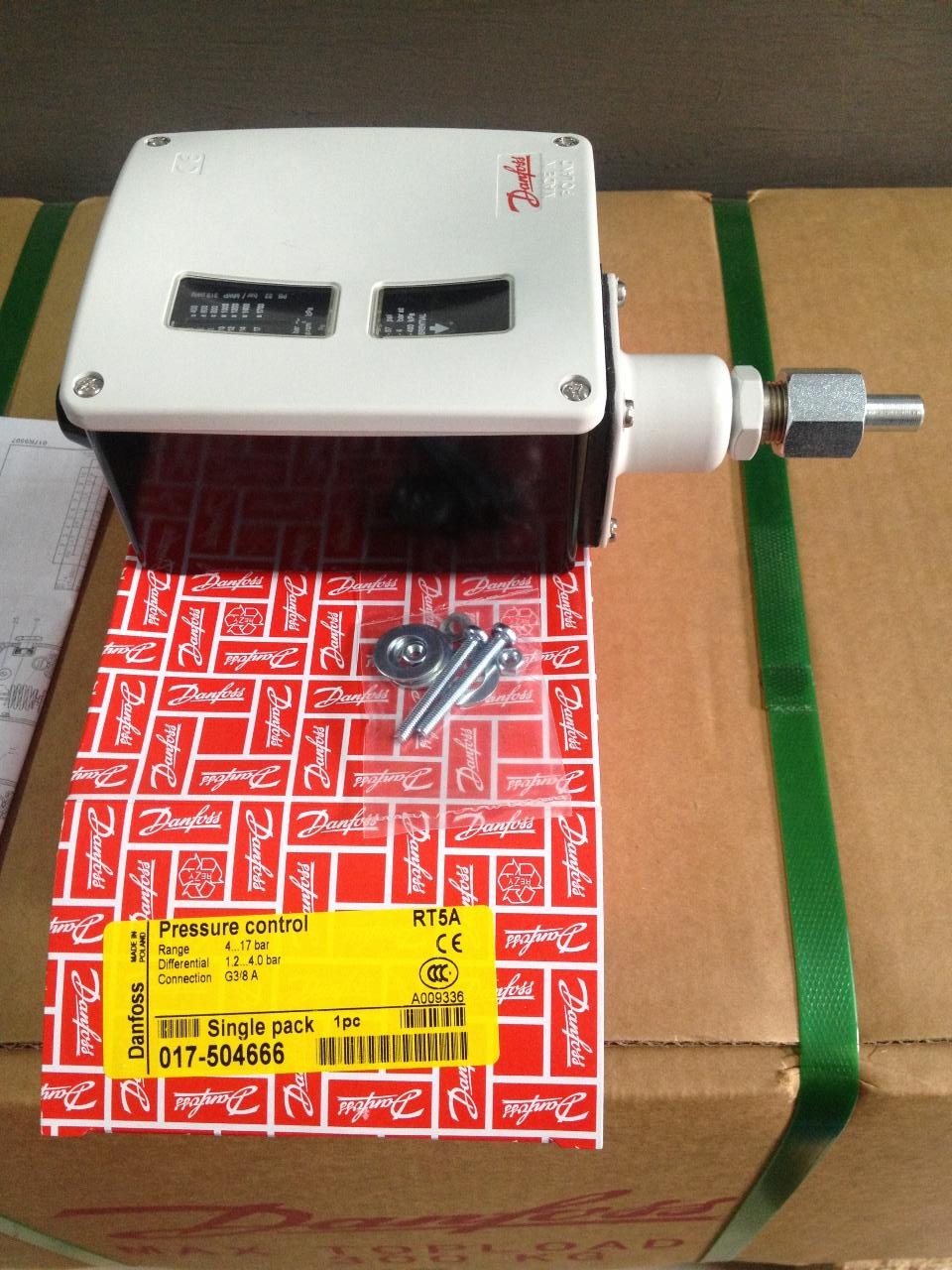

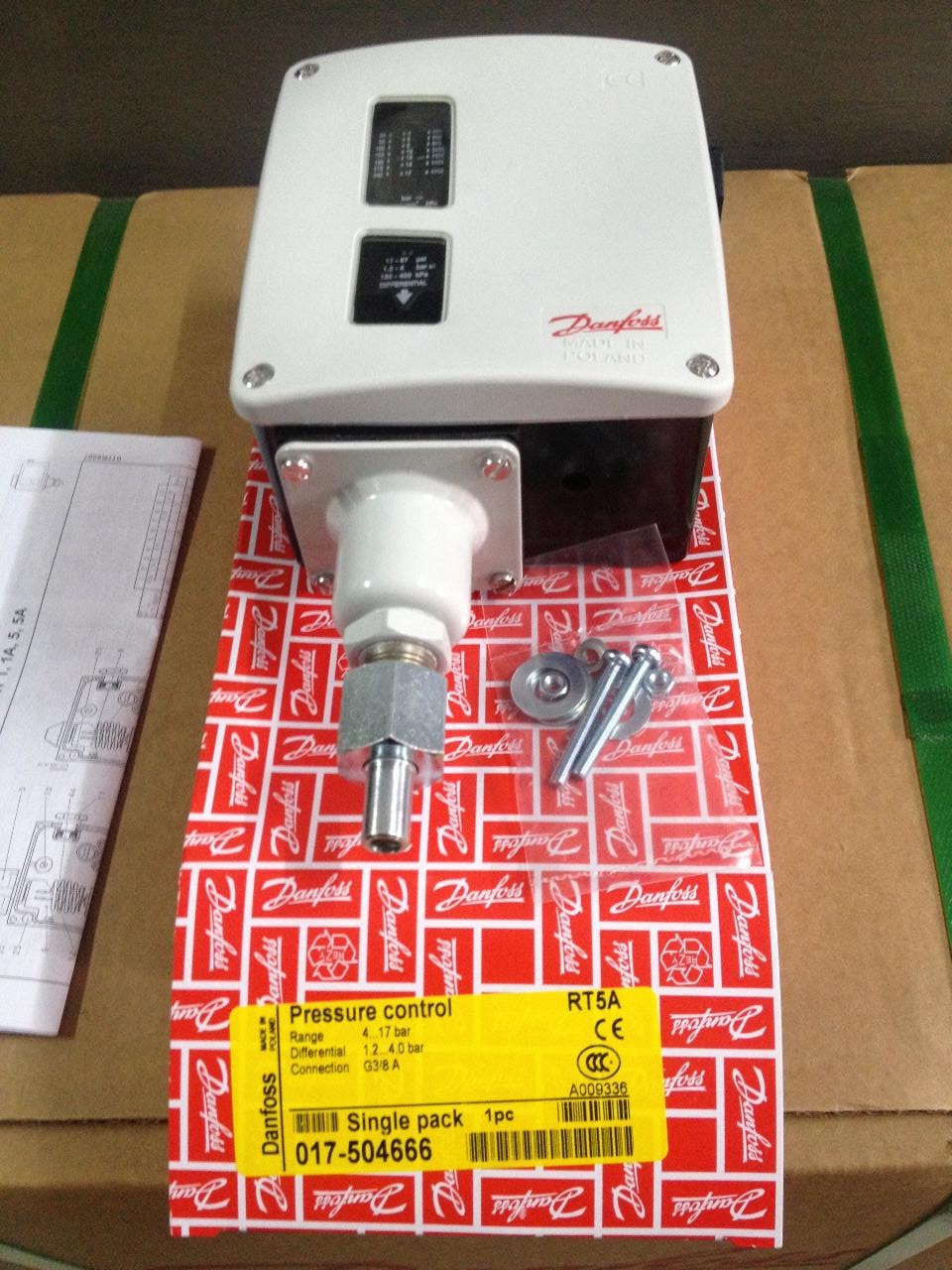

Name: RT5A Code 017-5046
SKU: SKU-00087
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	RT5A
Weight	0.794 Kg
Ambient temperature [°C]	-50 - 70 °C
Ambient temperature [°F]	-58 - 158 °F
Ambient temperature [°C]	-50 - 70 °C
Ambient temperature range [°F]	-58 - 158 °F
Ammonia application	Yes
Approval	CCC, CE, NKK, RMRS
Burst pressure [bar]	88,0 bar
Contact function	SPDT
Contact rating	AC1=10 A, 400 V
Contact rating	AC15=3 A, 400 V
Contact rating	AC3=4 A, 400 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR=28 A, 400 V
Differential [bar]	1,20 - 4,00 bar
Differential [psi]	17,40 - 58,00 psi
EAN	5702428003650
Electrical connection size	2xPg 13.5
Electrical specification standard	EN 60947-4/-5
Enclosure rating	IP66
Max. test pressure [bar] Pe	25,0 bar
Max. Working Pressure [bar]	22,0 bar
Max. Working Pressure [psig]	320 psig
Max. working pressure [bar] Pe	22,0 bar
Max. working pressure [psig] Pe	320,0 psig
Packing format	Multi pack
Pressure connection	G 3/8
Pressure connection notes	Weld nipple d6.5/D10mm
Pressure connection standard	ISO228-1
Pressure Male/Female	Male
Product description	Pressure Control
Product Design class	B
Quantity per packing format	15 PC
Regulation range [bar] Pe	4,00 - 17,00 bar
Regulation range [psig] Pe	58,00 - 246,60 psig
Reset function	AUTO

RT5A Code 017-5046

รายละเอียดสินค้า
