Name: KP2 Code 060-1120
SKU: SKU-00092
Availability: InStock

สินค้าในตะกร้า ({{total_num}} รายการ)

ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า

ราคาสินค้าทั้งหมด

฿ {{price_format(total_price)}}

- ฿ {{price_format(discount.price)}}

ราคาสินค้าทั้งหมด

{{total_quantity}} ชิ้น

฿ {{price_format(after_product_price)}}

ราคาไม่รวมค่าจัดส่ง

➜ เลือกซื้อสินค้าเพิ่ม

Characteristic	Value
Type	KP2
Weight	0.297 Kg
Ambient temperature [°C]	-25 - 65 °C
Ambient temperature [°F]	-13 - 149 °F
Ambient temperature range [°C]	-25 - 65 °C
Ambient temperature range [°F]	-40 - 149 °F
Ammonia application	No
Approval	BV, C UL US, CCC, CE, DNV, GL, GOST, LR, PED, RINA, RMRS
Contact function	SPDT
Contact rating	AC1=16 A, 400 V
Contact rating	AC15=10 A, 400 V
Contact rating	AC3=16 A, 400 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR 112 A, 400 V
Differential [bar]	0,40 - 1,50 bar
Differential [psi]	6,00 - 22,00 psi
EAN number	5702422052548
Electrical connections comments	Rubber cable gland
Electrical connection size	6-14 mm
Enclosure rating	IP44
Max. test pressure [bar] Pe	20,0 bar
Max. Working Pressure [bar]	17,0 bar
Max. Working Pressure [psig]	245 psig
Max. Working Pressure [bar] Pe	17,0 bar
Max. Working Pressure [psig] Pe	245,0 psig
Nema Rating	2
Pack format	Multi pack
Pressure connection	Flare 1/4 in
Pressure connection standard	DIN 8906
Pressure Male/Female	Male
Pressure range category	Low pressure
Pressure sensing element	Bellows
Product description	Pressure control
Product Design Class	B
Quantity per pack format	36 pc
Regulation range	6 inHg - 73 psig
Regulation range [bar] Pe	-0,20 - 5,00 bar
Reset function	Auto
UL approval file name	E31024
UL approval file name	MH27572

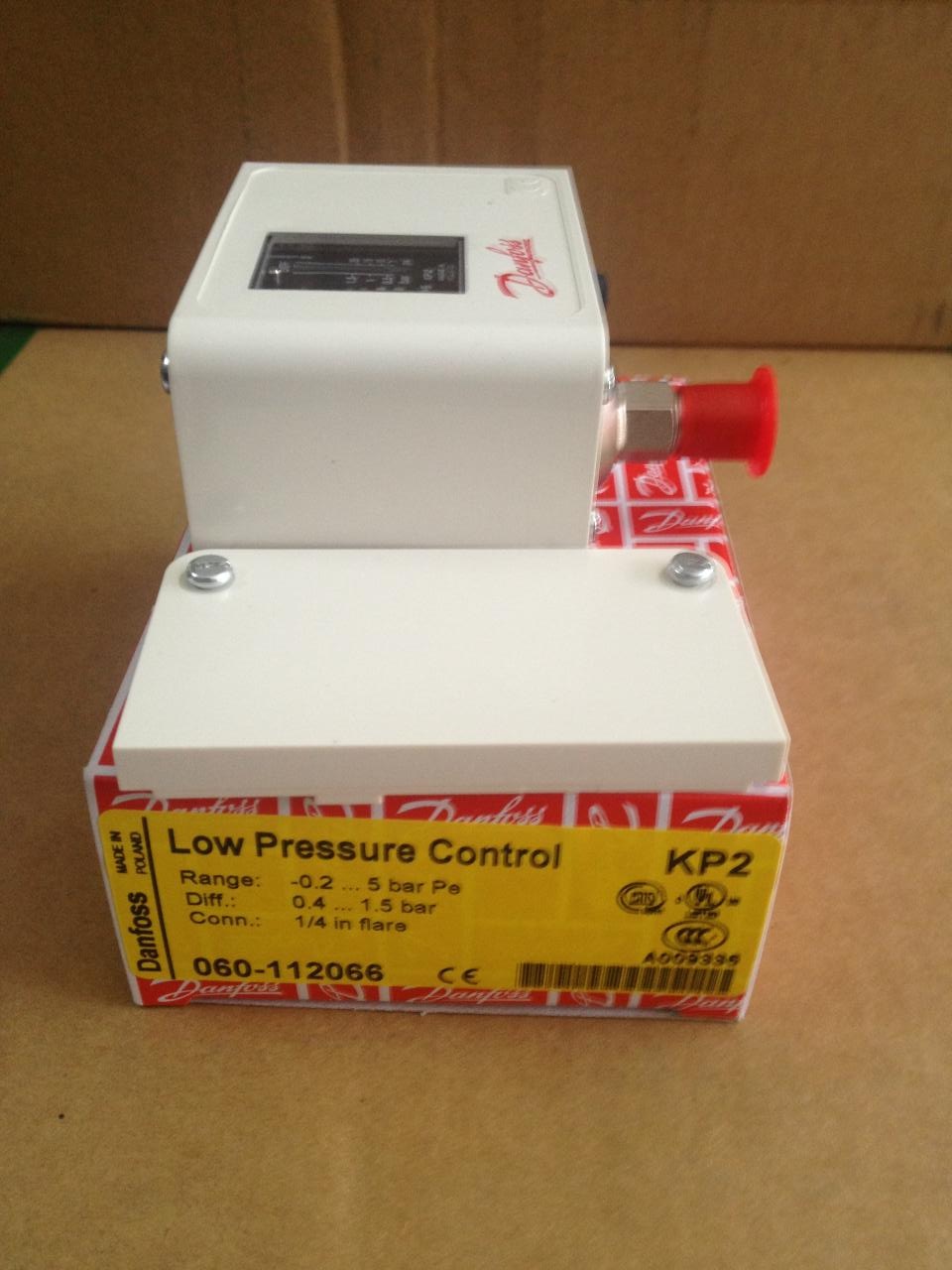

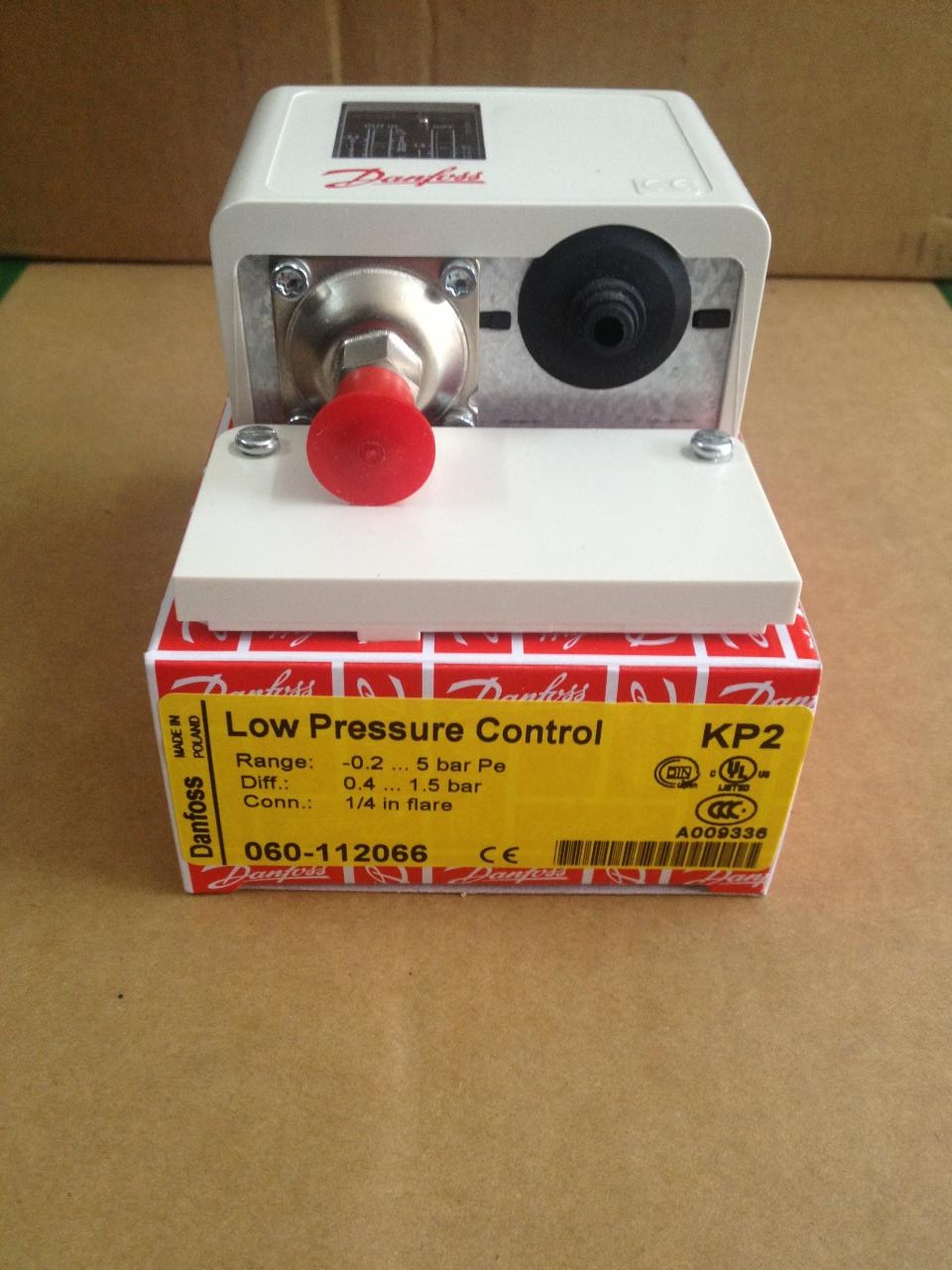

KP2 Code 060-1120
